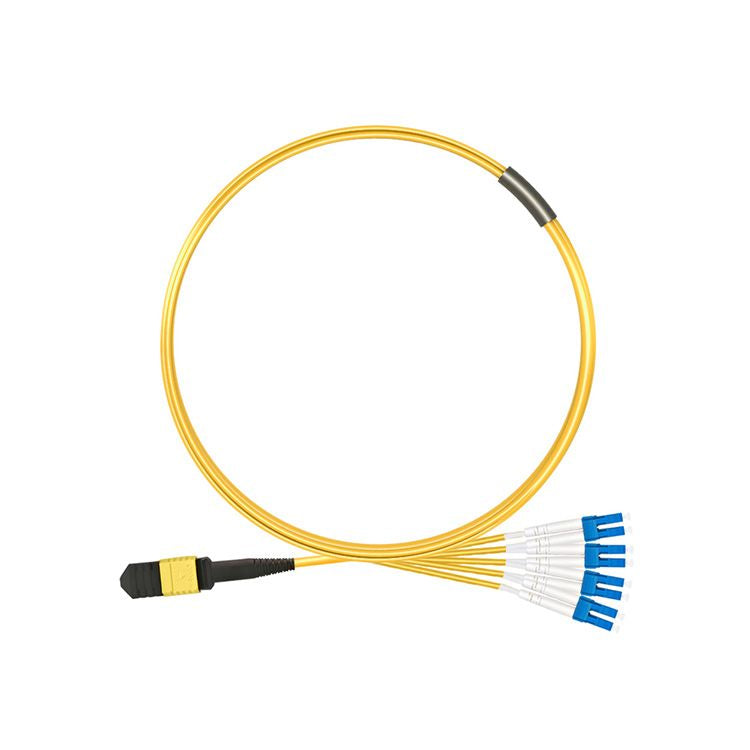

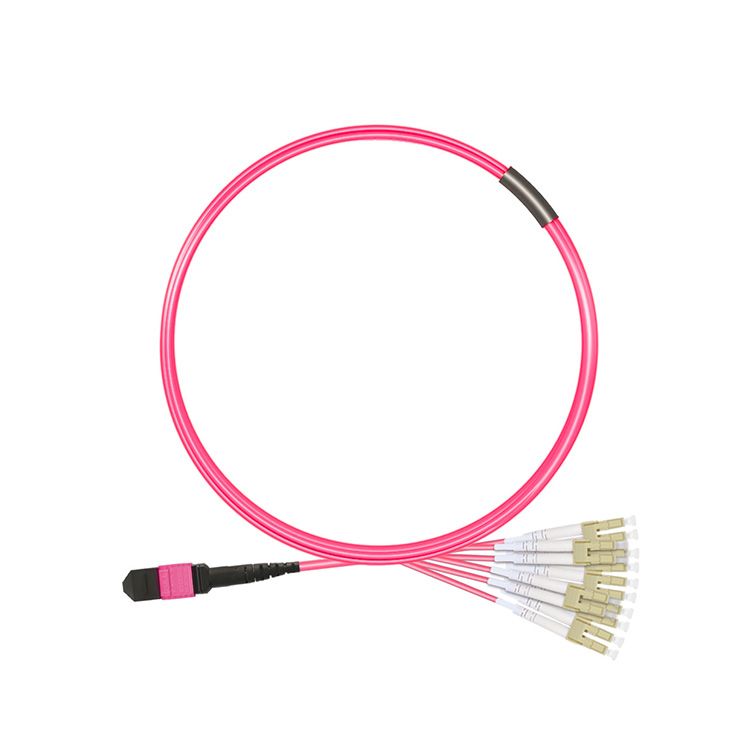

MPO to LC Optical Patch Cord

Fiber optic patch cord is used for linking the equipment and components in fiber optic network, is comprised of a polymer outer body and inner assembly fitted with a precision alignment mechanism. The combination of a ceramic/phosphor bronze alignment sleeves and precision molded polymer housing provides consistent long-term mechanical and optical performance.

Description

Relia offer kinds of fiber patch cord, such as FC, SC, ST, LC, MU, MTRJ, MPO, E2000 series, available for PC/UPC/APC version, provide with SM, MM, OM3 fiber cable, simplex and duplex types, 0.9mm, 2.0mm, 3.0mm cable diameter for choose, different fiber length by customers request.

Features Applications
MPO connector complied with IEC-61754-7 SAN (Storage area Network)data center LAN
A quick-to-deploy LAN/SAN switch equipment distribution area(EDA)
Scalable solution Emerging 40G and 100G protocol
High compatibility,flexibility&system performance
Lower installation cost


Packed with Plastic box,Label Size:190mm*150mm(A5)




Parameters

Performance Specifications

MPO Connector Standard SM MT Ferrule Low Loss SM MT Ferrule Standard MM MT Ferrule Low Loss MM MT Ferrule
Polish APC PC APC PC PC PC
Insertion Loss(dB) Typical 0.50 0.50 0.30 0.30 0.50 0.30
Maximun 0.70 0.70 0.50 0.50 0.70 0.50
Return Loss（dB） 60 45 60 45 20 20
Exchangeability(dB） ≤0.3
Durability（dB） ≤0.2dB (500 Matings,per EIA-455-21A)
Tensile Strength（dB） ≤0.3dB (Max 66N)
Operating temperature（℃） -20~+60
Storage temperature（℃） -40~+80
