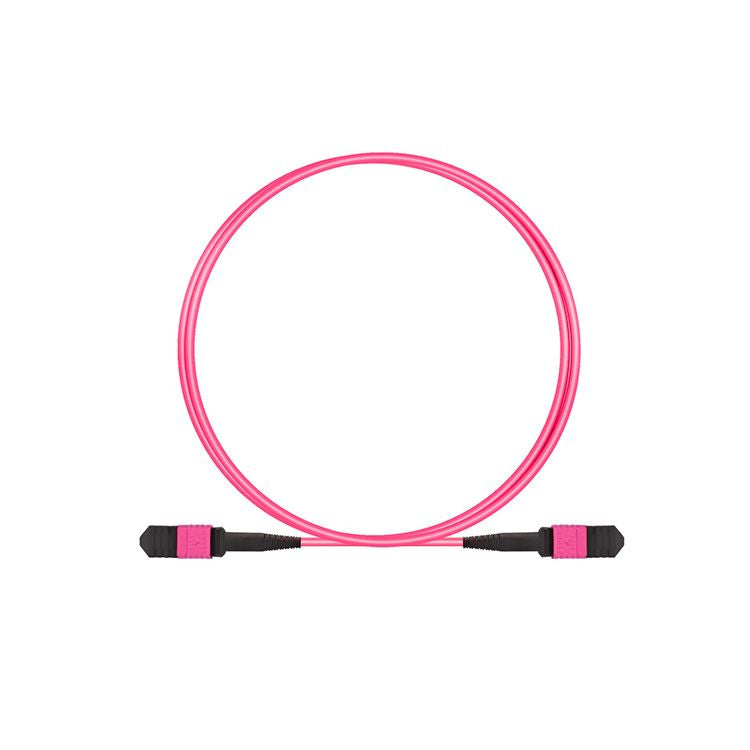

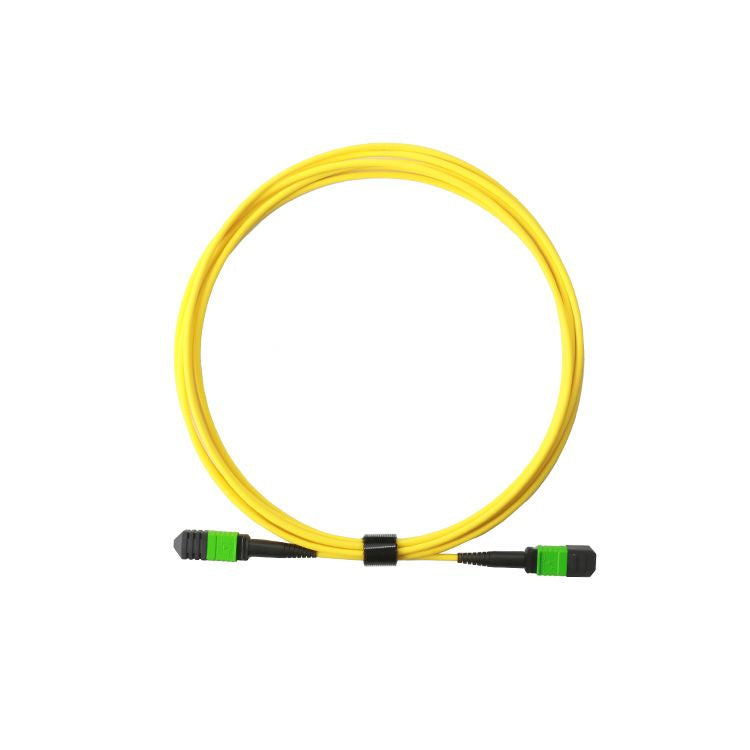

MPO / MTP Optical Patch Cord

Fiber optic patch cord is used for linking the equipment and components in fiber optic network, is comprised of a polymer outer body and inner assembly fitted with a precision alignment mechanism. The combination of a ceramic/phosphor bronze alignment sleeves and precision molded polymer housing provides consistent long-term mechanical and optical performance.

Description
Features Applications
MPO connector complied with IEC-61754-7 SAN (Storage area Network)data center LAN
A quick-to-deploy LAN/SAN switch equipment distribution area(EDA)
Scalable solution Emerging 40G and 100G protocol
High compatibility,flexibility&system performance
Lower installation cost


MT Ferrule(Male&FEmale)


Cable type Description
5913b4b921e9a.png Round housing Kits Female and Male----Cable Boot, Crimp Ring, Spring Push, Spring, Pin Clamp Assembly(Female or Male),Housing Assembly
MPO connector Length 60.2mm
Cable Boot 3.0mm or 3.6mm
Female & Male MM boots Color---Beige, Aqua, Black, White...Special
Female& Male SM boots Color—Green, Yellow, Mustard.....Special
5913b4bc323b0.png Oval housing Kits Female and Male----Cable Boot, Crimp Ring, Spring Push, Spring, Pin Clamp Assembly(Female or Male),Housing Assembly
MPO connector Length 45.6mm
Female & Male MM boots Color---Beige, Aqua, Black, White...Special
Female& Male SM boots Color—Green, Yellow, Mustard.....Special
5913b4bf5ec50.png Bare Ribbon Housing Kits Female and Male----Cable Boot, Crimp Ring, Spring Push, Spring, Pin Clamp Assembly(Female or Male),Housing Assembly
MPO connector Length 43.0mm
Female & Male MM boots Color---Beige, Aqua, Black, White...Special
Female& Male SM boots Color—Green, Yellow, Mustard.....Special

MPO Communication Marks Division




Parameters

Performance Specifications

MPO Connector Standard SM MT Ferrule Low Loss SM MT Ferrule Standard MM MT Ferrule Low Loss MM MT Ferrule
Polish APC PC APC PC PC PC
Insertion Loss(dB) Typical 0.50 0.50 0.30 0.30 0.50 0.30
Maximun 0.70 0.70 0.50 0.50 0.70 0.50
Return Loss（dB） 60 45 60 45 20 20
Exchangeability(dB） ≤0.3
Durability（dB） ≤0.2dB (500 Matings,per EIA-455-21A)
Tensile Strength（dB） ≤0.3dB (Max 66N)
Operating temperature（℃） -20~+60
Storage temperature（℃） -40~+80
